Gelid 解決方案 – GP-EXTREME 120×20 導熱墊

$9.50$19.00

SKU: N/A
  • 適用於筆記型電腦、GPU 和遊戲機的最佳導熱墊。
  • 極限導熱性
  • 非導電
  • 無腐蝕性、非固化、無毒
0.5mm
1.0mm
1.5mm
2.0mm
2.5mm
3.0mm
Value Pack 0.5mm
Value Pack 1.0mm
Value Pack 1.5mm
Value Pack 2.0mm
Value Pack 2.5mm
Value Pack 3.0mm
Clear

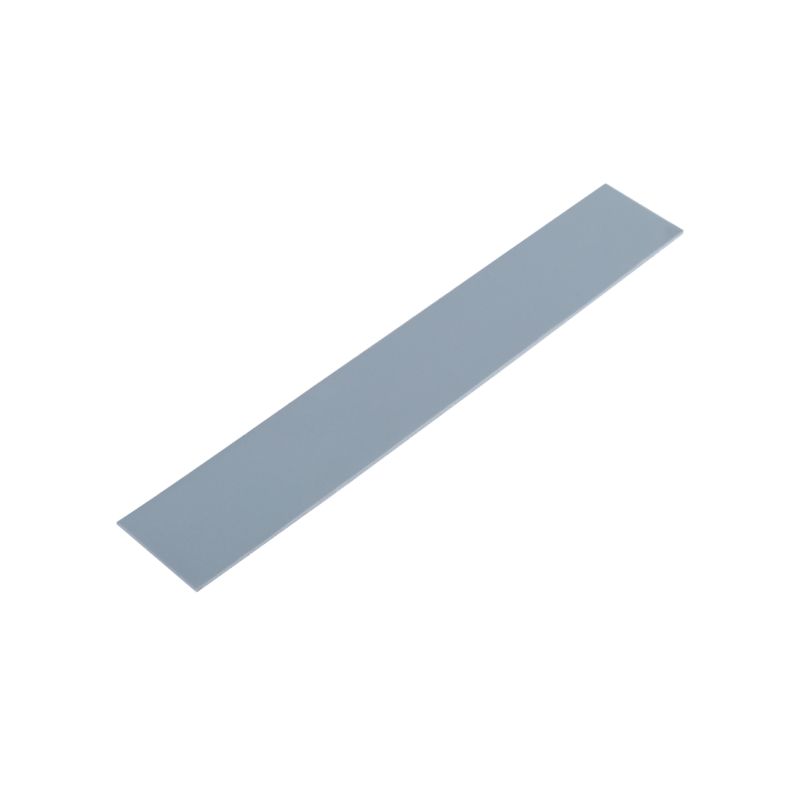

GP-至尊 120×20 導熱墊系列



尖端的導熱墊



厚度變體:
單件裝 (包括 1 件): 0.5 毫米 (TP-GP05-A), 1.0 毫米 (TP-GP05-B), 1.5 毫米 (TP-GP05-C), 2.0 毫米 (TP-GP05-D), 2.5 毫米 (TP-GP05-F), 3.0 毫米 (TP-GP05-E)
超值包裝 (包括 2 件): 0.5 毫米 (TP-VP05-A), 1.0 毫米 (TP-VP05-B), 1.5 毫米 (TP-VP05-C), 2.0 毫米 (TP-VP05-D), 2.5 毫米 (TP-VP05-F), 3.0 毫米 (TP-VP05-E)



Gelid Solutions GP-Extreme 120×20 設計用於在安裝在具有高度差和不平坦表面的 PCB 上時與散熱器的完美熱接觸,例如微控制器單元、記憶體 IC、類比 ICMOSFET 和其他貼片元件。 由於其柔軟性和終極導熱性,GP-Extreme可以適當地填充空間,並提供同類產品中的最佳性能。 GP-Extreme 不導電,無腐蝕性, 非固化, 且無毒。 GP-Extreme 確保易於應用,120×20 mm 的導熱墊尺寸非常適合 VGA 卡、筆記型電腦、 遊戲機和其他 密集的設備。



GP-至尊版 120x120



注意:使用前請取下保護膜!



EAN (單包 1 件)
0.5毫米:4897025783993
1毫米:4897025783986
1.5毫米:4897025782006
2毫米:4897025783294
2.5毫米:4897025783430
3毫米:4897025783300



EAN (超值包 2 件):
0.5毫米:4897025783317
1.0毫米:4897025783324
1.5毫米:4897025783331
2.0毫米:4897025783348
2.5毫米:4897025783447
3.0毫米:4897025783355

Density (g/cm3): 2.8
Hardness (Shore): 65 OO
Size (mm): 120 x 20
  • What are Thermal Pads?

Thermal Pad, or Thermally Conductive Pad, is a pre-formed sheet of solid material made of a wax, silicone or synthetic matrix that is filled with a composition of thermally conductive microparticles and engineered to conduct heat efficiently from a high-temperature surface to heatsink installed onto it. Once placed pad in between, it softens, fills the surface gaps and boosts heat transfer.

  • Where are Thermal Pads used?

General applications: Motherboard VRM, Motherboard Chipset, SSD, DRAM ICs, GPU VRAM, GPU VRM, micro-controller units, MOSFETs and analog ICs.



  • Which thickness variant of GP-Extreme / GP-Ultimate will fit my application?

It may vary significantly depending on the device that is supposed to be used with. Please refer to the device manual / instructions or reach out to us for more information.



  • Can Thermal Pads be reused?

Unfortunately not, you cannot reuse thermal pads.



  • Are Thermal Pads adhesive?

No, thermal pads are not adhesive. You will need a proper mounting to hold the thermal pad with a heatsink.

  • Can I stack Thermal Pads?

When using thermal pads, it’s not recommended that you stack one above the other. Doing so will create gaps between the pads and degrade heat transfer.

  • Are GP-Extreme / GP-Ultimate compressible?

Yes, you can compress GP-Extreme / GP-Ultimate by up to 30% of thickness with an adequate pressure of the heatsink mounts.



  • How long does GP-Extreme / GP-Ultimate last?

GP-Extreme / GP-Ultimate carries a 5 year limited warranty.



  • Are Thermal Pads electrically conductive?

Absolutely not! Thermal pads are non-electrically conductive.



  • Can I use GP-Extreme / GP-Ultimate with a CPU heatsink?

Yes, you can. Although it’s advisable that you use GC-Extreme Thermal Paste for best performance in CPU applications.

  • Where can I find the W/mK specifications of GP-Extreme / GP-Ultimate?

We don’t use the W/mK rating since it may vary depending on your application and doesn’t reflect real-world performance. Please consider the thinnest possible GP-Extreme / GP-Ultimate variant in your application for efficient heat transfer and best performance.

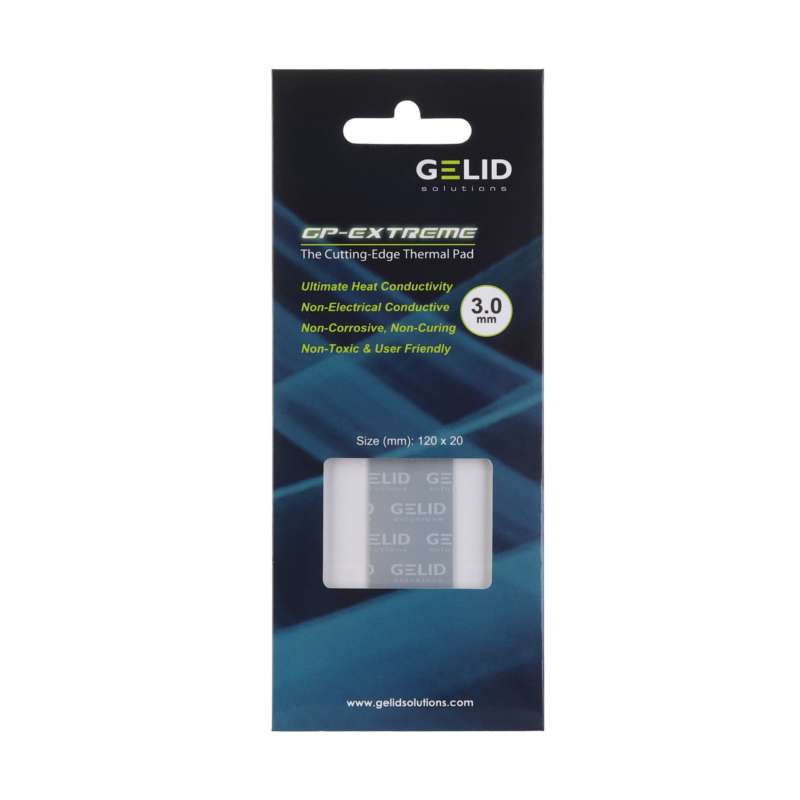

GP-EXTREME 120x20 SINGLE PACK

GP-EXTREME 120x20 VALUE PACK
