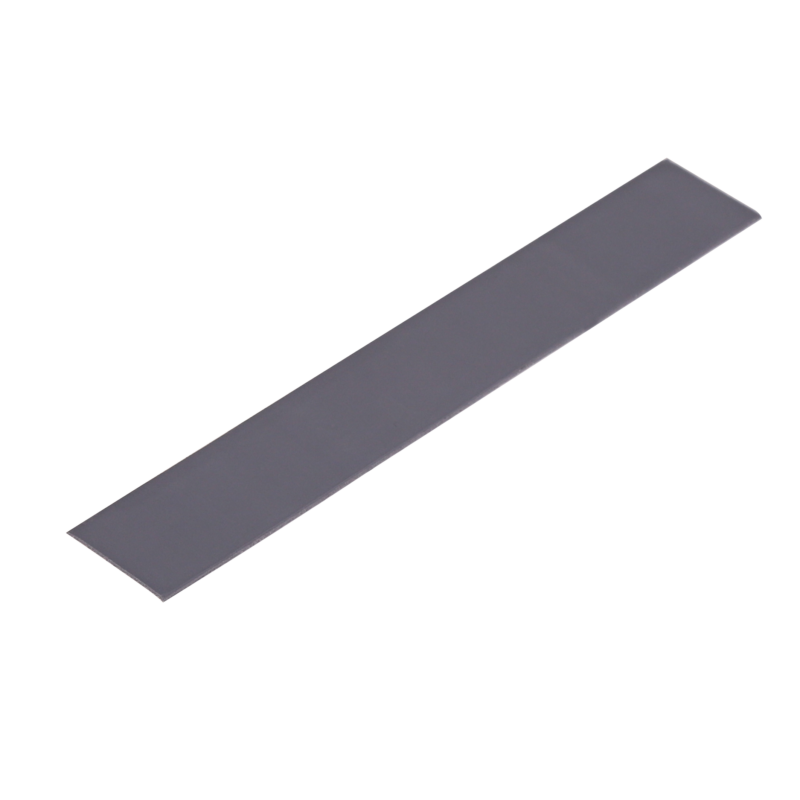

Gelid Solutions – GP-Ultimate 120×20 Thermal Pad

$7.00$22.00

SKU: N/A
  •  Ultimate Heat Conductivity
  •  Non-Electrical Conductive
  •  Non-Corrosive, Non-Curing & Non-Toxic
  •  Easy Application
  •  Perfect for RAM Memory, VRM & M.2 Type SSD

GP-Ultimate 120×20 Thermal Pad Series

The cutting-edge Thermal Pad

Thickness variants:
Single Pack (1pc included): 0.5 mm (TP-GP04-R-A), 1.0mm (TP-GP04-R-B), 1.5mm (TP-GP04-R-C), 2mm (TP-GP04-R-D), 3mm (TP-GP04-R-E)
Value Pack (2pcs included): 0.5mm (TP-VP04-R-A), 1.0mm (TP-VP04-R-B), 1.5mm (TP-VP04-R-C), 2mm (TP-VP04-R-D), 3mm (TP-VP04-R-E)

Gelid Solutions’ thermal pads are created to provide an excellent thermal interface to transfer heat to heatsinks when installed on PCB with height differences and uneven surfaces such as DRAM ICs, VRM ICs, power MOSFETs, NVRAM ICs, and other high-temperature SMD components. Thanks to its enhanced multilayer matrix, superior material composition, and the ultimate 15W/mK thermal conductivity, the GP-Ultimate 120×20 offers the best performance in class.

The GP-Ultimate 120×20 is non-electrical conductive, non-corrosive, non-curing, non-toxic, and supports extended operating temperature range -60°C to 220°C. It features seamless application and has the thermal pad dimensions of 120x20mm to best fit enlarged surfaces of RAM Memory modules, GPU and CPU VRM circuits, M.2 Type SSD and other densely packed electronic devices.

GP-Extreme 120x120

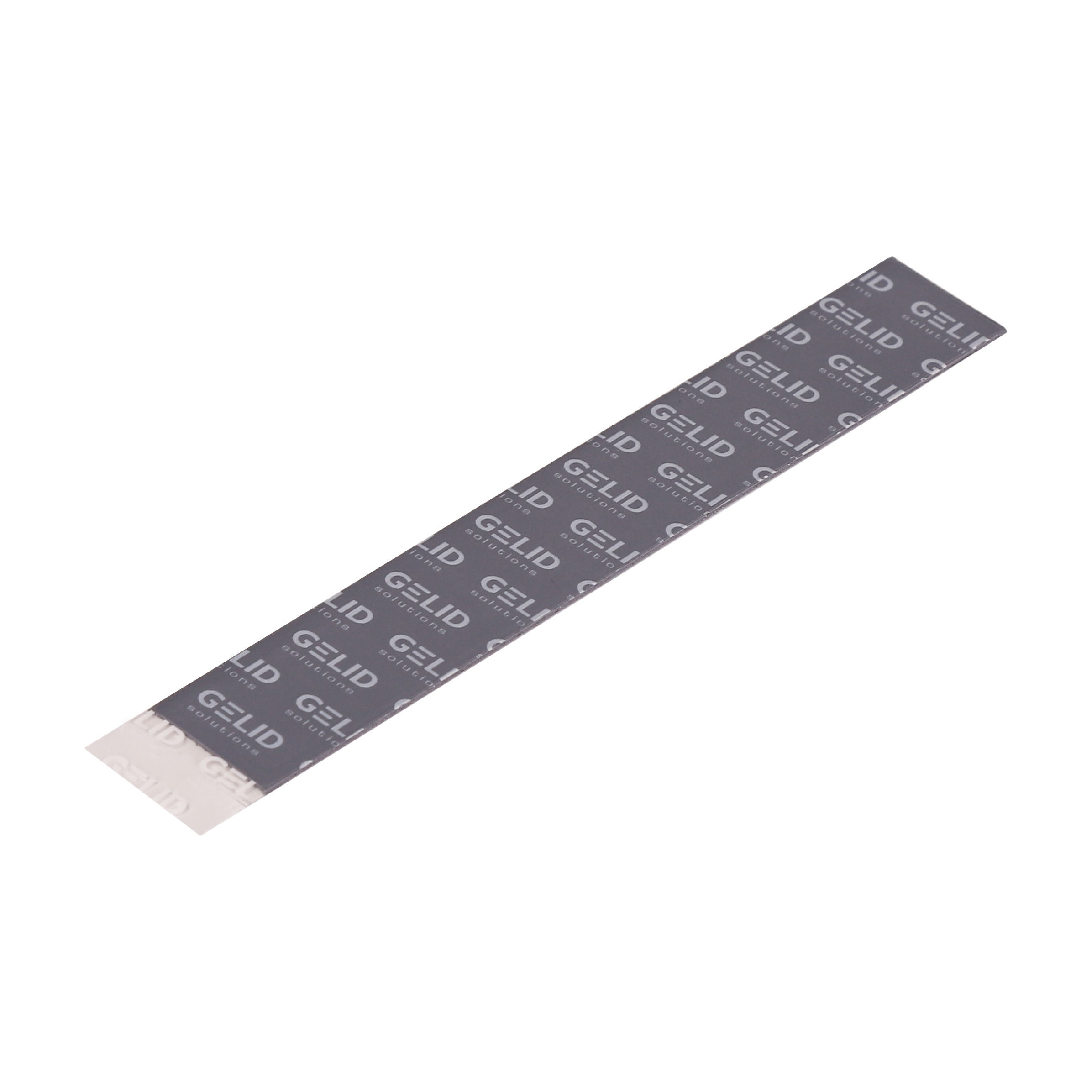

Please remove the protective films from both sides before application!

Once applied, the shape of the Thermal Pad becomes compressed and deformed, and it is non-reusable.



EAN (Single):
0.5mm: 4897025782532
1mm: 4897025782549
1.5mm: 4897025782556
2mm: 4897025782921
3mm: 4897025782969



EAN (Value Pack 2pcs):
0.5mm: 4897025782631
1mm: 4897025782648
1.5mm: 4897025782655
2mm: 4897025782662
3mm: 4897025782976


Zeden.net Award


January 2020: ZeDen.net


"Les GP-ULIMATE ont prouvé leurs efficacités et leurs dimensions sont adaptées pour couvrir les besoins d’une carte graphique. Il est tout de même dommage qu’ils soient aussi friables alors que certaines autres marques proposent des produits beaucoup plus élastiques et résistants. Notre Mining Rig respire beaucoup mieux et aura une plus longue durée de vie grâce au GP-ULTMIATE et la pâte GC-EXTREME."


EnosTech Review


December 2019: Enos Tech


"The pricing of GELID Solutions GP-Extreme and GP-Ultimate starts at USD 5.33/EUR 4.80 and goes to USD 16/EUR 14.35 depending upon the thickness of the thermal pad in the respective product category. We have tested these thermal pads on Lexar NM610 M.2 NVMe 250GB SSD for which we cut the 0.5mm thermal pads from both categories to the size of M.2 SSD Type 2280. The GP-Extreme has provided a temperature drop of 17°C under load and GP-Ultimate has provided a temperature drop of whopping 21°C. The GELID Solutions GP-Extreme and GP-Ultra based on their excellent performance and relatively good pricing come highly recommended by us."

NGUYỄN CÔNG PC, May 2021

https://youtu.be/VO-IZJ0bj-Y

TechManiacHD, Dec 2022

https://www.youtube.com/watch?v=VLx1QxqqURs

Density (g/cm3): 3.2
Hardness (Shore): 60-70 OO
Size (mm): 120 x 20
  • What are Thermal Pads?

Thermal Pad, or Thermally Conductive Pad, is a pre-formed sheet of solid material made of a wax, silicone or synthetic matrix that is filled with a composition of thermally conductive microparticles and engineered to conduct heat efficiently from a high-temperature surface to heatsink installed onto it. Once placed pad in between, it softens, fills the surface gaps and boosts heat transfer.

  • Where are Thermal Pads used?

General applications: Motherboard VRM, Motherboard Chipset, SSD, DRAM ICs, GPU VRAM, GPU VRM, micro-controller units, MOSFETs and analog ICs.



  • Which thickness variant of GP-Extreme / GP-Ultimate will fit my application?

It may vary significantly depending on the device that is supposed to be used with. Please refer to the device manual / instructions or reach out to us for more information.



  • Can Thermal Pads be reused?

Unfortunately not, you cannot reuse thermal pads.



  • Are Thermal Pads adhesive?

No, thermal pads are not adhesive. You will need a proper mounting to hold the thermal pad with a heatsink.

  • Can I stack Thermal Pads?

When using thermal pads, it’s not recommended that you stack one above the other. Doing so will create gaps between the pads and degrade heat transfer.

  • Are GP-Extreme / GP-Ultimate compressible?

Yes, you can compress GP-Extreme / GP-Ultimate by up to 30% of thickness with an adequate pressure of the heatsink mounts.



  • How long does GP-Extreme / GP-Ultimate last?

GP-Extreme / GP-Ultimate carries a 5 year limited warranty.



  • Are Thermal Pads electrically conductive?

Absolutely not! Thermal pads are non-electrically conductive.



  • Can I use GP-Extreme / GP-Ultimate with a CPU heatsink?

Yes, you can. Although it’s advisable that you use GC-Extreme Thermal Paste for best performance in CPU applications.

  • Where can I find the W/mK specifications of GP-Extreme / GP-Ultimate?

We don’t use the W/mK rating since it may vary depending on your application and doesn’t reflect real-world performance. Please consider the thinnest possible GP-Extreme / GP-Ultimate variant in your application for efficient heat transfer and best performance.
